In the world of smart lighting, the DALI (Digital Addressable Lighting Interface) D4i standard is a significant development. It provides a framework for enhanced communication and power management in lighting systems. Understanding the power requirements of a DALI D4i bus is crucial for anyone involved in designing or maintaining these systems. In this technical documentation, we’ll explore the fundamental aspects of DALI D4i bus power requirements, helping you to implement them effectively in your lighting projects.

What is DALI D4i?

The DALI protocol is an international standard for the control of lighting systems. D4i, a part of this protocol, stands out by integrating data and power over a single bus, making it particularly suitable for Internet of Things (IoT) applications. This integration allows for more efficient lighting control and energy management.

Key Features of DALI D4i

Data Communication and Power in One: DALI D4i allows data and power to flow through the same bus, simplifying wiring and reducing costs.

Enhanced Data Handling: It supports advanced data collection and monitoring, facilitating energy usage analysis and predictive maintenance.

IoT Readiness: With DALI D4i, lighting systems can seamlessly connect to IoT platforms, enhancing smart building capabilities.

Understanding DALI Bus Power

The power requirements of a DALI bus are pivotal to its functioning. The DALI bus provides power to the control gear, sensors, and other devices connected to it. Understanding these requirements ensures that the system operates efficiently and reliably.

DALI D4i Bus Power Requirements

Voltage Levels: The DALI bus operates at a nominal voltage of 16V DC. The voltage can vary between 9.5V and 22.5V, but it must remain within these limits for optimal performance.

Current Capacity: The DALI bus can supply up to 250mA of current. This current is shared among all devices connected to the bus. It's important to calculate the total current demand of the system to ensure it doesn't exceed this limit.

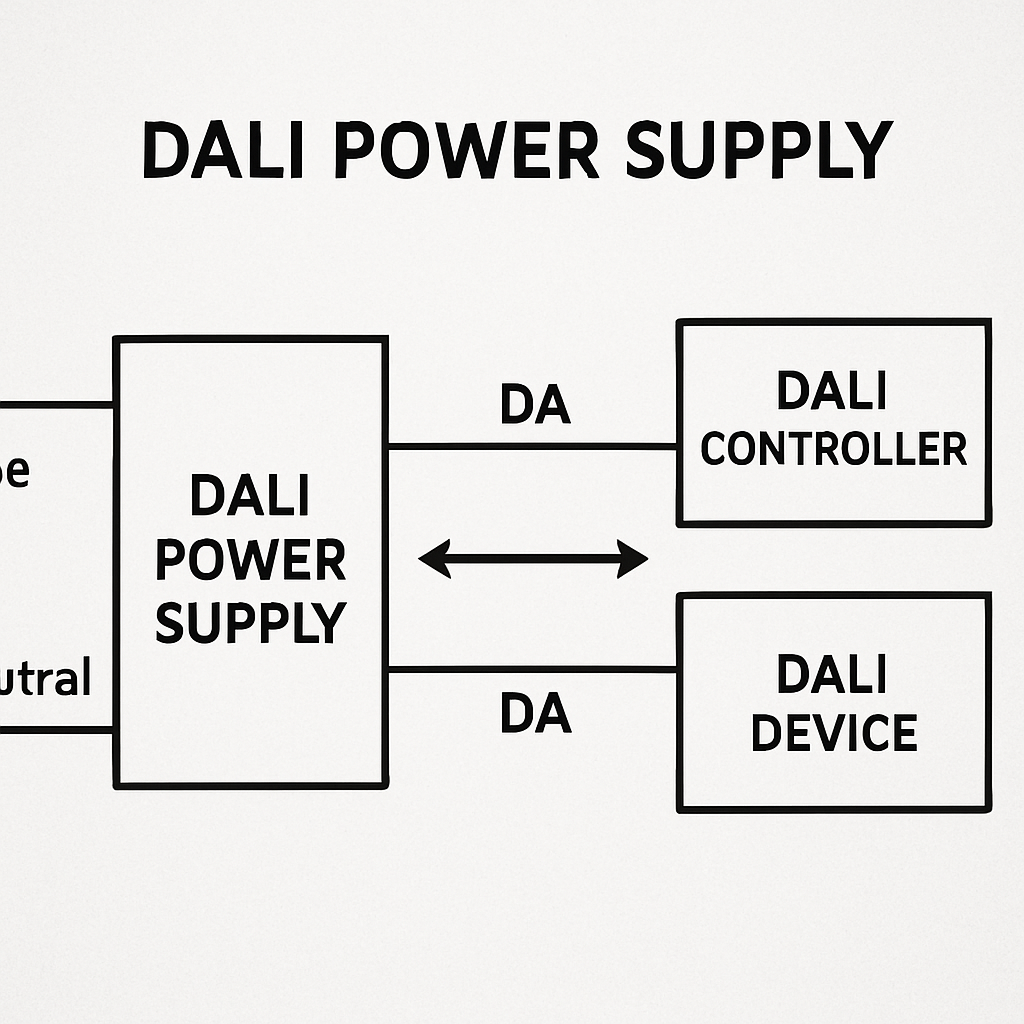

Power Supply: A dedicated DALI power supply is required for the system. This power supply must be able to support the voltage and current requirements mentioned above.

Calculating Power Needs

To calculate the power needs for a DALI D4i system, consider the following:

Total Device Current: Sum the current requirements of all devices connected to the bus.

Safety Margin: Include a safety margin to account for unexpected increases in power consumption.

Power Supply Rating: Ensure the power supply can deliver the total current plus the safety margin within the specified voltage range.

Practical Considerations

Implementing DALI D4i systems requires careful planning and consideration of several practical aspects.

Device Compatibility

Ensure all devices connected to the DALI bus are compatible with the D4i standard. Incompatibility can lead to communication failures and inefficient power usage.

System Layout

Plan the layout of your DALI system to optimize the use of the bus. This includes strategic placement of devices and efficient wiring to minimize voltage drops and power losses.

Monitoring and Maintenance

Implement monitoring tools to track the performance and power usage of your DALI system. Regular maintenance checks help identify and resolve issues before they affect system performance.

Advantages of Using DALI D4i

Adopting the DALI D4i standard offers several advantages for lighting systems:

Simplified Wiring: By combining data and power in a single bus, DALI D4i reduces the complexity and cost of installation.

Enhanced Control: With advanced data handling capabilities, it allows for precise control and monitoring of lighting systems.

Scalability: The DALI D4i system can easily scale, accommodating additional devices and expanding system capabilities.

Energy Efficiency: By optimizing power usage, DALI D4i contributes to more energy-efficient lighting systems.

Challenges and Solutions

While DALI D4i presents numerous benefits, it also comes with challenges that need addressing:

Power Management

Managing power distribution across multiple devices can be complex. Ensure that the power supply and bus are adequately sized for the system's needs.

Device Interoperability

Different manufacturers may have varying interpretations of the D4i standard, leading to interoperability issues. Always verify compatibility and, if necessary, consult with manufacturers for guidance.

Technical Expertise

Implementing a DALI D4i system requires a certain level of technical expertise. Training and support from experienced professionals can help overcome this challenge.

Conclusion

The DALI D4i standard represents a leap forward in smart lighting technology, offering simplified wiring, advanced control, and improved energy efficiency. Understanding the power requirements and practical considerations of implementing a DALI D4i system is essential for maximizing its benefits. By adhering to these guidelines, you can ensure a reliable and efficient lighting solution that stands the test of time.

Whether you're an engineer, technician, or facility manager, mastering the intricacies of DALI D4i will empower you to create smarter, more efficient lighting environments. Embrace this technology to transform your lighting systems into intelligent, future-ready solutions.
