Understanding Bluetooth Low Energy (BLE) Technology

Bluetooth Low Energy, commonly known as BLE, is a wireless communication technology designed for short-range connectivity. BLE was introduced as part of the Bluetooth 4.0 specification to address the need for low power consumption communication while maintaining a similar communication range as its predecessor, Classic Bluetooth.

In this article, we will explore the basics of BLE technology, its applications, and its significance, especially in the realm of medical devices.

Bluetooth Low Energy is a variant of Bluetooth technology designed to provide reduced power consumption and cost while maintaining a similar communication range. BLE achieves this by using a different communication protocol, allowing devices to remain in sleep mode until a connection is initiated.

Unlike Classic Bluetooth, which is ideal for continuous data streaming, BLE is optimized for periodic data transmission, making it perfect for devices that need to operate on small batteries for extended periods.

Key Features of BLE

Low Power Consumption: BLE is designed to consume significantly less power than Classic Bluetooth, making it ideal for battery-operated devices.

Short Range: BLE operates effectively within a range of approximately 50 meters, depending on the environment.

Simple Device Pairing: BLE offers a straightforward pairing process, which is essential for user-friendly applications.

Interoperability: BLE devices can communicate with other Bluetooth devices, making it versatile for various applications.

How Does BLE Work?

BLE operates in the 2.4 GHz ISM band and uses frequency hopping to minimize interference from other wireless technologies. It employs a simple communication protocol where devices can be in one of three states: advertising, scanning, or connected.

BLE Advertising and Scanning

Advertising: A BLE device can broadcast packets of data to nearby devices. These packets contain information about the device and the services it offers.

Scanning: Other BLE devices can scan for these advertising packets to discover nearby devices and establish a connection.

BLE Connection

Once a device is discovered through scanning, a connection can be established. In this connected state, data can be exchanged between devices. BLE uses a master-slave architecture, where the master device initiates and manages the connection, while the slave device responds to the master's requests.

Applications of BLE Technology

BLE technology has gained immense popularity due to its low power consumption and versatility. Here are some common applications:

Wearable Devices

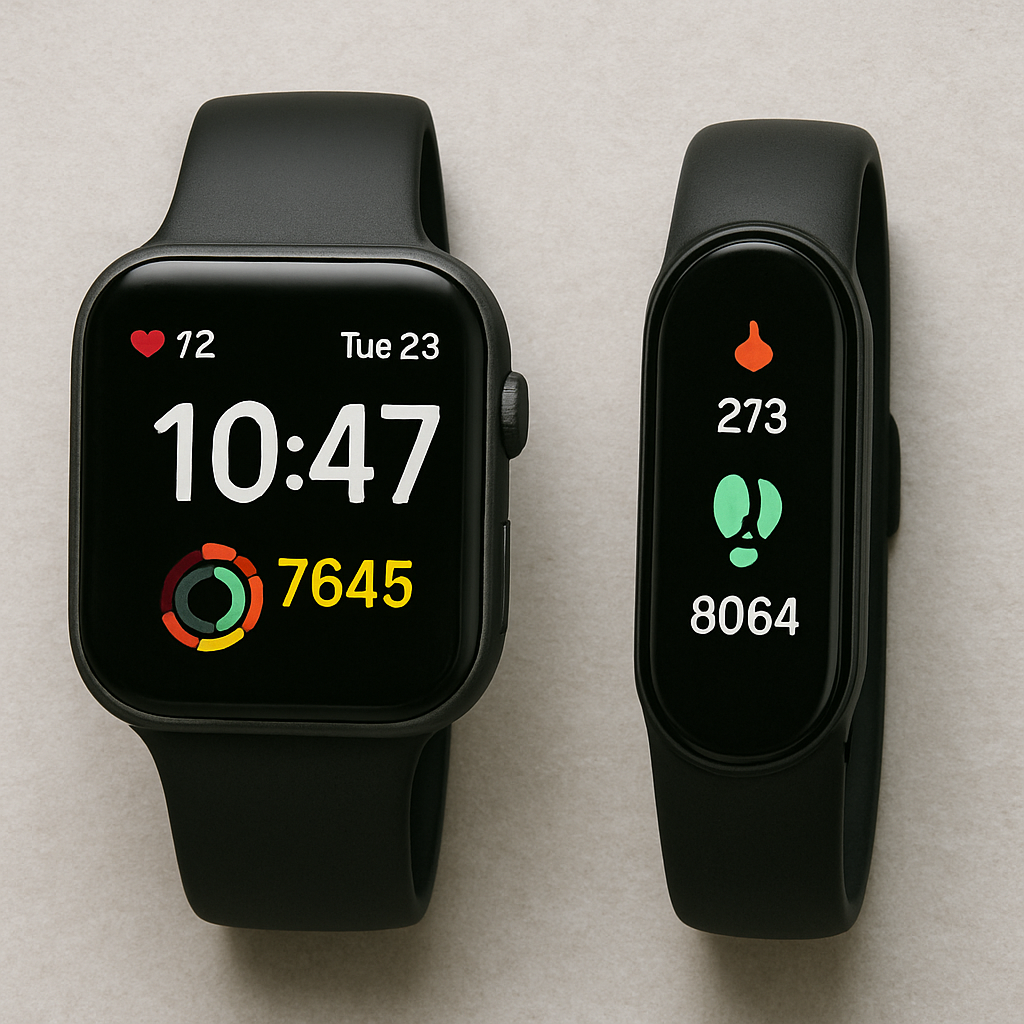

Wearable devices such as fitness trackers, smartwatches, and health monitors often use BLE to communicate with smartphones and other devices. BLE allows these devices to operate on small batteries for extended periods while providing real-time data to users.

Medical Devices

In the medical field, BLE technology is used in various devices such as glucose monitors, heart rate monitors, and medical alert systems. The ability to transmit data wirelessly without significant power consumption makes BLE an ideal choice for medical devices that require constant monitoring.

BLE Medical Abbreviation

The acronym BLE is also used in the medical field as an abbreviation for "Bilateral Lower Extremities," which refers to both legs in medical terminology. It's essential to understand the context in which BLE is used to avoid confusion.

Smart Home Devices

BLE is widely used in smart home devices such as smart locks, lights, and thermostats. These devices benefit from BLE's low power requirements and the ability to connect with smartphones for remote control.

Asset Tracking

BLE beacons are employed in asset tracking systems to monitor the locati0n of items in real-time. This is particularly useful in large facilities such as warehouses and hospitals.

Advantages of Bluetooth Low Energy

BLE technology offers several advantages that make it suitable for a wide range of applications:

Energy Efficiency: BLE's low power consumption extends the battery life of devices, reducing the need for frequent recharging.

Cost-Effectiveness: BLE modules are relatively inexpensive, making them an economical choice for manufacturers.

Scalability: BLE can connect multiple devices simultaneously, making it ideal for IoT applications.

Security: BLE incorporates security features to protect data transmission, ensuring that sensitive information remains private.

Challenges and Considerations

While BLE technology offers numerous benefits, there are some challenges and considerations to keep in mind:

Limited Data Rate: BLE is not suitable for high data rate applications such as audio streaming.

Interference: BLE shares the 2.4 GHz band with other wireless technologies, which can lead to interference in crowded environments.

Range Limitations: While BLE is effective for short-range communication, it may not be suitable for applications requiring long-range connectivity.

Conclusion

Bluetooth Low Energy (BLE) technology has revolutionized the way devices communicate wirelessly, offering energy-efficient and cost-effective solutions for a wide range of applications. From wearable and medical devices to smart home gadgets and asset tracking, BLE's versatility and low power consumption make it a preferred choice for modern technology solutions.

Understanding BLE technology and its applications can help you harness its potential to create innovative products and improve existing systems. As BLE continues to evolve, it will undoubtedly play a pivotal role in the growing Internet of Things (IoT) ecosystem, connecting more devices and making our world smarter and more efficient.
