Time：2025-11-21
Heavy duty IP65 rated smart luminaires are industrial-grade lighting solutions engineered to withstand extreme environmental stressors while delivering data-driven efficiency. Combining IP65’s dustproof/waterproof certification (complete dust ingress protection + resistance to low-pressure water jets from any direction) with heavy-duty structural design (IK10+ impact resistance, anti-vibration, corrosion-resistant materials) and smart functionality, these luminaires serve as the backbone of illumination in harsh industrial settings. This guide distills core value, application cases, technical highlights, and implementation essentials for quick reference.
IP65 Compliance: Meets IEC 60529 standards—sealed enclosures (silicone/EPDM gaskets) prevent dust accumulation on LEDs/drivers, and waterproof cable glands resist water jets (3m distance, 3 minutes duration), ideal for dusty workshops, outdoor industrial zones, and humid environments.
Heavy-Duty Construction: Reinforced aluminum alloy/stainless steel (304/316L) housings, anti-corrosion coatings (polyurethane/powder-coat), and IK12+ impact resistance (withstands 20J impact from debris/forklifts) for high-vibration scenarios (machinery floors, mining sites).
Extreme Environment Adaptability: Operating temperature range -45℃ to 90℃ (suitable for cold storage, steel mills), and chemical resistance to cleaning agents (Ecolab-certified) and saltwater (coastal/offshore facilities).
Intelligent Control Modes: AI-powered motion/radar sensors (25m detection range) with occupancy prediction, dynamic dimming (20-100% brightness), daylight harvesting, and scheduled lighting (sync with shift patterns).
Connectivity Options: Dual-mode support (5G/4G for low-latency smart factory integration, LoRaWAN for remote sites) with compatibility for PLCs, SCADA, MES, and cloud platforms (AWS Industrial, Azure IoT Hub).
Predictive Maintenance: Embedded sensors monitor temperature, power draw, and seal integrity, transmitting real-time alerts for gasket wear, driver degradation, or moisture ingress—reducing unplanned downtime by 60%.
Challenge: High wind (up to 120km/h), dust, rain exposure, and 24/7 forklift/AGV traffic.
Solution: 180-250W heavy duty IP65 smart high-bay luminaires (140+ lm/W) with wide beam angles (120°), wind-load resistant mounting, and radar-laser hybrid sensors.
Results: 78% energy savings vs. metal halide fixtures, 40% reduction in nighttime collision incidents, and 240-minute battery backup for power outages (compliant with IMO lighting standards).
Case Snippet: German Port of Hamburg deployed 1,800 units across 500,000 sqm—annual savings of $420,000 and zero fixture failures due to weather/dust.
Challenge: Vibration from machinery, paint overspray, low-pressure washdowns, and variable task lighting needs.
Solution: Modular 150-200W IP65 luminaires (paint-resistant fluoropolymer coating) + explosion-proof variants (ATEX Zone 1) for paint shops, integrated with MES to sync lighting with production batches.
Results: 72% energy savings, 15% reduction in assembly time, and compliance with IATF 16949 (anti-glare optics reduce operator fatigue).
Challenge: Extreme dust, high temperature (up to 80℃), vibration, and remote operation.
Solution: 200-300W high-temperature-resistant IP65 luminaires (air-cooled heat dissipation), dust-tight sensors, and LoRaWAN connectivity for remote monitoring.
Results: 75% energy savings vs. halogen lamps, 80% reduction in maintenance visits (predictive alerts), and MSHA compliance (USA) / GB 3836 (China) certification.

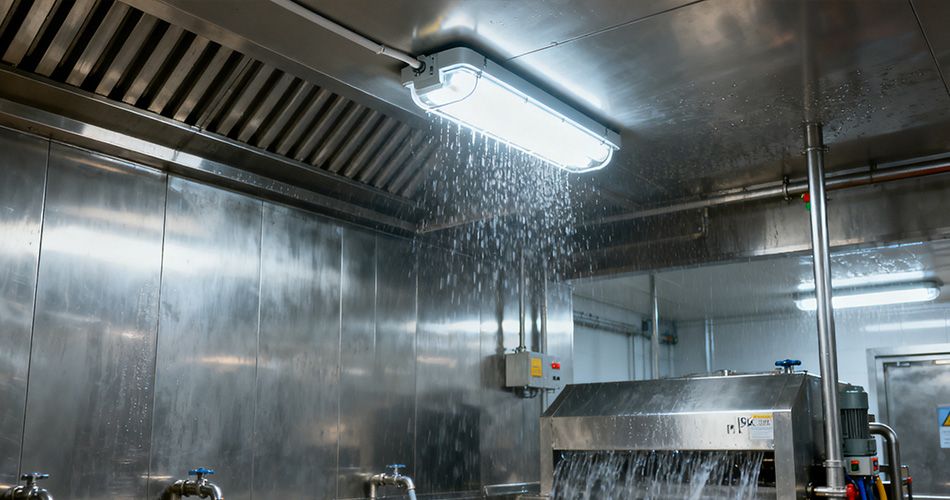

Challenge: Hygiene requirements, cold storage (-35℃), and frequent low-pressure washdowns.
Solution: 80-120W IP65 luminaires (316L stainless steel, crevice-free design) + anti-frost optics, UV-C disinfection integration (activated during non-production hours).
Results: FDA/FSMA compliance, 68% energy savings, and 35% reduction in cleaning time (no bacterial harborage points).
Challenge: Saltwater corrosion, high humidity, and proximity to hazardous zones.
Solution: Marine-grade IP65 luminaires (316L stainless steel, IP66-enhanced seals) with wireless LoRa sensors (no wired risks).
Results: 68% energy savings, zero corrosion-related failures in 3 years, and compliance with API RP 540.
Power/Lumen Match: 150-250W (high-bay, 8m+ ceilings), 80-120W (low-bay, 4-8m), 30-60W (task lighting); prioritize lm/W ≥ 135 for efficiency.
Environment-Specific Features: ESD-safe (electronics manufacturing), UV-C (food/pharma), low-temperature startup (cold storage), anti-glare (transportation hubs).
Certification Check: UL 1598A (North America), IEC 60598 (global), ATEX/IECEx (hazardous area peripherals), DLC Premium/ENERGY STAR (rebate eligibility).
Pre-Installation: Inspect gaskets for damage; use vibration-dampening brackets in high-vibration zones; seal cable entries with compatible waterproof glands.
Routine Maintenance: Monthly visual checks (fixture damage/seal integrity); quarterly gasket cleaning/lubrication; annual sensor calibration and lens cleaning (mild detergent, no high-pressure water).
Lifespan & TCO: MTBF ≥ 200,000 hours (2-3x longer than standard lighting); typical payback period 12-24 months (energy + maintenance savings).
Durability: Withstands dust, moisture, vibration, and extreme temperatures—reducing replacement costs by 50-70%.
Efficiency: 60-80% energy savings vs. legacy fixtures (metal halide/fluorescent) + 60% less unplanned downtime (predictive maintenance).
Safety & Compliance: Meets global industrial standards (OSHA, FDA, IATF 16949) and reduces workplace accidents by 30-40%.
Flexibility: Scalable modular design, dual connectivity, and task-specific customization for diverse industrial scenarios.
