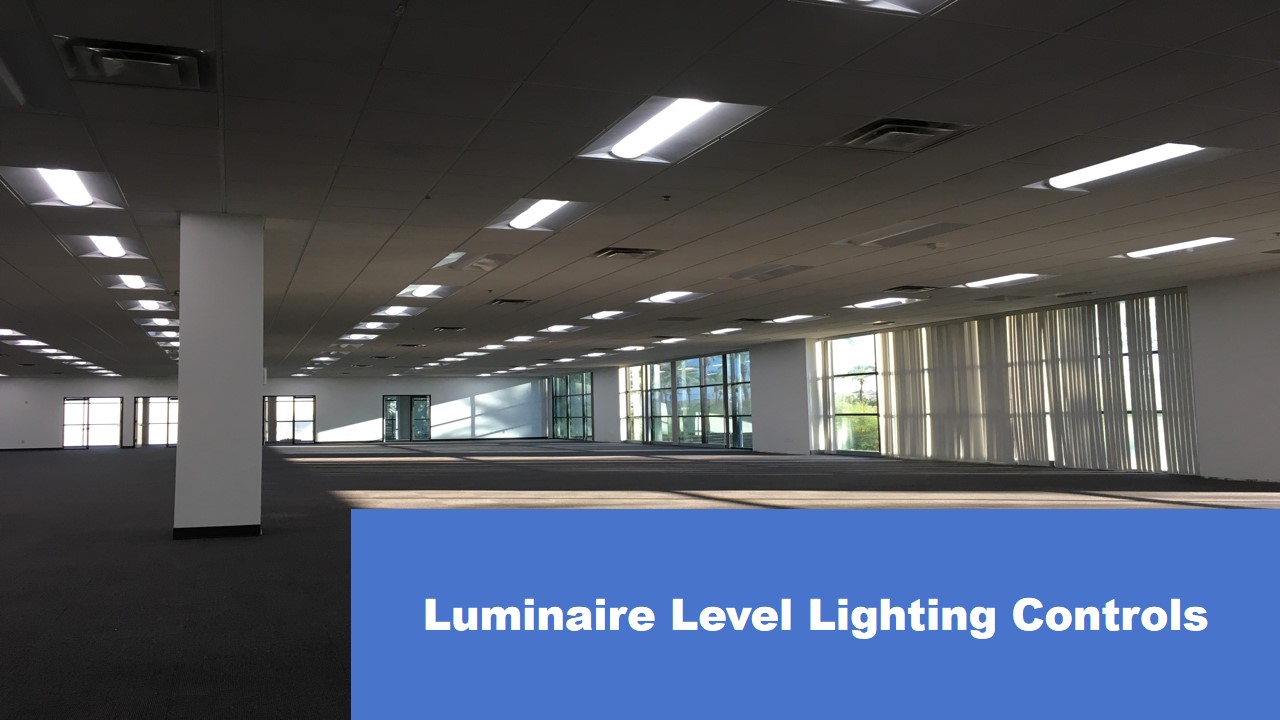

Proper installation is critical to unlocking the full potential of LLLC (Luminaire Level Lighting Control) integrated sensor luminaires—smart fixtures that combine lighting, sensors, and controllers into a single, networked unit. For commercial spaces like offices, retail stores, and healthcare facilities, following LLLC integrated sensor luminaire installation guidelines ensures these systems deliver on their promises of energy efficiency, adaptability, and reliability. This article outlines key best practices from LLLC integrated sensor luminaire installation guidelines, focusing on how to position, connect, and validate these fixtures to maximize performance.

Pre-Installation Planning: The Foundation of Success

LLLC integrated sensor luminaire installation guidelines emphasize thorough pre-installation planning to avoid common pitfalls. Start by assessing the space’s unique needs:

Occupancy Patterns: Identify high-traffic areas (e.g., retail aisles, hospital corridors) versus low-activity zones (e.g., storage rooms) to determine optimal sensor sensitivity settings later.

Lighting Requirements: Note natural light sources (windows, skylights) and task-specific needs (e.g., bright lighting for workstations, dimmer settings for waiting areas) to inform fixture placement.

Network Infrastructure: Ensure the space has reliable wireless connectivity (e.g., Wi-Fi, Bluetooth) to support LLLC communication between fixtures, gateways, and controllers. Weak signals can disrupt data sharing and automation.

LLLC integrated sensor luminaire installation guidelines also recommend reviewing local electrical codes to ensure compliance, especially for hardwired connections. This step prevents delays during inspections and ensures long-term safety.

Fixture Positioning: Maximizing Sensor Effectiveness

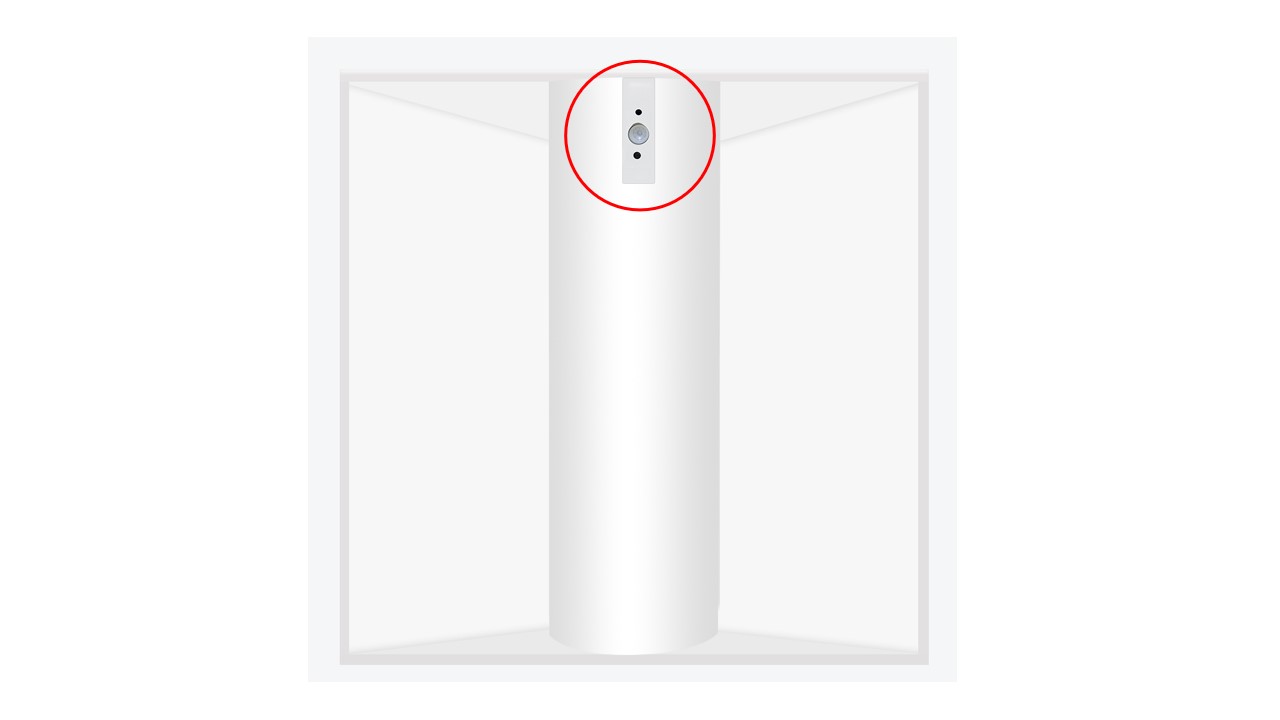

The placement of LLLC integrated sensor luminaires directly impacts how well their built-in sensors (occupancy, ambient light) function. LLLC integrated sensor luminaire installation guidelines stress these key positioning rules:

Avoid Obstructions: Sensors should have an unobstructed view of the area they monitor. Mount fixtures away from large furniture, equipment, or partitions that could block motion detection or light readings.

Height and Angle: For occupancy sensors, LLLC integrated sensor luminaire installation guidelines suggest mounting fixtures at a height that covers the intended space without overreach. In open offices, this might mean positioning luminaires 8–10 feet above the floor, angled slightly downward to focus on work zones.

Spacing: To prevent coverage gaps or overlaps, space fixtures according to the area’s size. In narrow corridors, for example, closer spacing ensures continuous detection as people move through the space.

Proper positioning ensures sensors trigger lighting adjustments accurately—brightening when someone enters and dimming when a space is empty—avoiding false triggers or missed detections.

Wiring and Network Integration: Ensuring Seamless Communication

LLLC integrated sensor luminaires rely on both power and network connections to function. LLLC integrated sensor luminaire installation guidelines outline steps to ensure these connections are secure and reliable:

Power Connections: Follow manufacturer recommendations for wiring (hardwired or low-voltage) to avoid overloading circuits. Use certified electricians to handle connections, ensuring compliance with safety standards.

Network Pairing: After powering fixtures, use the system’s gateway or controller to pair each luminaire with the network. LLLC integrated sensor luminaire installation guidelines advise testing connectivity immediately—checking that fixtures appear in the management dashboard and respond to remote commands.

Controller Syncing: Ensure luminaires communicate with any additional controllers or switches. This allows for manual overrides (e.g., adjusting lighting in a meeting room) while maintaining LLLC automation.

A strong network connection is vital: it enables real-time data sharing between fixtures, ensuring the system adjusts lighting cohesively across the space.

Calibration and Testing: Fine-Tuning for the Space

Even with correct positioning and wiring, LLLC integrated sensor luminaires require calibration to match the space’s unique conditions. LLLC integrated sensor luminaire installation guidelines recommend these steps:

Sensor Sensitivity: Adjust occupancy sensor settings to avoid over-reacting to minor movements (e.g., a swaying curtain) or missing slow activity (e.g., someone sitting at a desk). Most systems allow calibration via a mobile app or controller.

Daylight Harvesting: Sync ambient light sensors with the space’s natural light patterns. In rooms with large windows, set luminaires to dim gradually as sunlight increases, preventing harsh transitions.

Automation Rules: Program lighting schedules (e.g., dimming after hours) and occupancy-based triggers (e.g., full brightness when a retail fitting room is occupied) using the system’s software. Test these rules to ensure they align with daily operations.

Calibration ensures the system balances energy efficiency with user comfort—avoiding overly dim spaces or unnecessary brightness.

Post-Installation Validation: Confirming Performance

LLLC integrated sensor luminaire installation guidelines stress the importance of post-installation checks to verify the system works as intended:

Functional Testing: Walk through the space to test occupancy detection—ensuring lights brighten promptly when entering and dim within a reasonable timeframe when exiting. Check that daylight harvesting adjusts lighting smoothly as natural light changes.

Network Reliability: Monitor the system dashboard for 24–48 hours to confirm all fixtures remain connected. Dropouts may indicate positioning issues or network interference that needs addressing.

User Training: Train facility staff or end-users on basic operations, such as manual overrides via switches or adjusting settings through the app. This ensures the system is used correctly, maintaining efficiency.

Maintenance Tips from LLLC Installation Guidelines

To preserve performance, LLLC integrated sensor luminaire installation guidelines include simple maintenance practices:

Clean Sensors Regularly: Dust or debris on sensors can reduce accuracy. Wipe sensor lenses with a soft cloth quarterly.

Update Firmware: Use the gateway to install software updates, which often include improvements to sensor responsiveness or network stability.

Inspect Connections: Periodically check wiring and network links to ensure they remain secure, especially in high-traffic areas prone to vibration.

Conclusion: Following Guidelines for LLLC Success

LLLC integrated sensor luminaire installation guidelines are more than a checklist—they are a roadmap to maximizing the value of smart lighting in commercial spaces. By planning carefully, positioning fixtures strategically, and calibrating thoughtfully, businesses can ensure their LLLC systems deliver reliable automation, energy savings, and user satisfaction.

For providers of commercial smart lighting solutions, emphasizing adherence to these guidelines helps build trust with clients, demonstrating a commitment to performance. For facility managers, following LLLC integrated sensor luminaire installation guidelines ensures their investment in smart lighting pays off—today and for years to come.
