Bluetooth Low Energy, commonly called BLE or Bluetooth LE, is a low-power wireless technology designed for devices that need to exchange data efficiently without maintaining a continuous high-bandwidth connection.
In commercial smart lighting, BLE can connect lighting controllers, occupancy sensors, switches, gateways, smartphones and other control devices without requiring dedicated communication wiring between every device.
But BLE and Bluetooth Mesh are not the same thing.
BLE provides the underlying wireless communication technology, while Bluetooth Mesh builds on Bluetooth LE to support many-to-many communication across larger device networks.
That distinction becomes important when evaluating wireless lighting controls for offices, warehouses, schools, retail spaces and other commercial buildings.

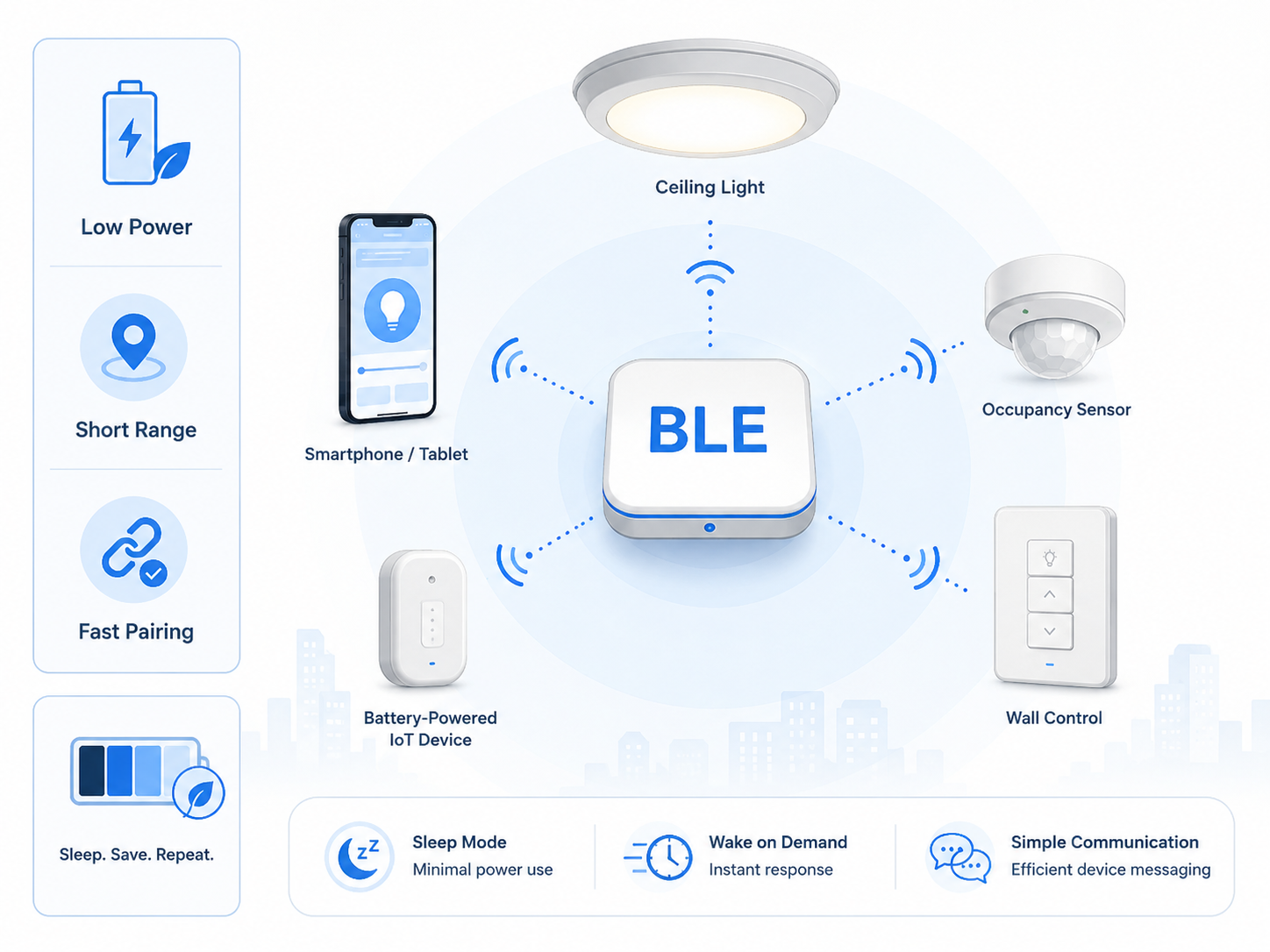

Bluetooth Low Energy was introduced as part of the Bluetooth 4.0 specification and is now a core part of the Bluetooth technology ecosystem.
Like Classic Bluetooth, BLE operates in the 2.4 GHz ISM band, but it is optimized for applications that transmit relatively small amounts of data efficiently.
Instead of maintaining a continuous high-data connection, a BLE device can communicate only when necessary. This makes it particularly useful for sensors, controls and IoT devices.
Typical BLE applications include:
Occupancy and environmental sensors
Smart lighting controls
Building automation devices
Asset tracking
Beacons
Wearables
IoT devices
In a commercial lighting system, for example, an occupancy sensor may only need to report a change in room status, while a wireless switch sends commands such as ON, OFF or DIM.
These applications do not require the continuous data throughput associated with audio streaming, making BLE a practical wireless foundation.
BLE and Classic Bluetooth belong to the same Bluetooth family, but they are designed for different communication needs.
Feature | Bluetooth Low Energy | Classic Bluetooth |
Main purpose | Low-power data communication | Continuous data transmission |
Typical applications | Sensors, controls, IoT | Audio, headsets, streaming |
Power requirements | Optimized for low power | Generally higher |
Communication pattern | Short or periodic data | Continuous connection |
Smart lighting use | Well suited | Limited |
Bluetooth Mesh support | Yes | No |
For smart lighting, the ability to efficiently exchange short control and sensor messages is generally more important than high data throughput.
This is one reason Bluetooth LE has become relevant to connected lighting and building-control applications.

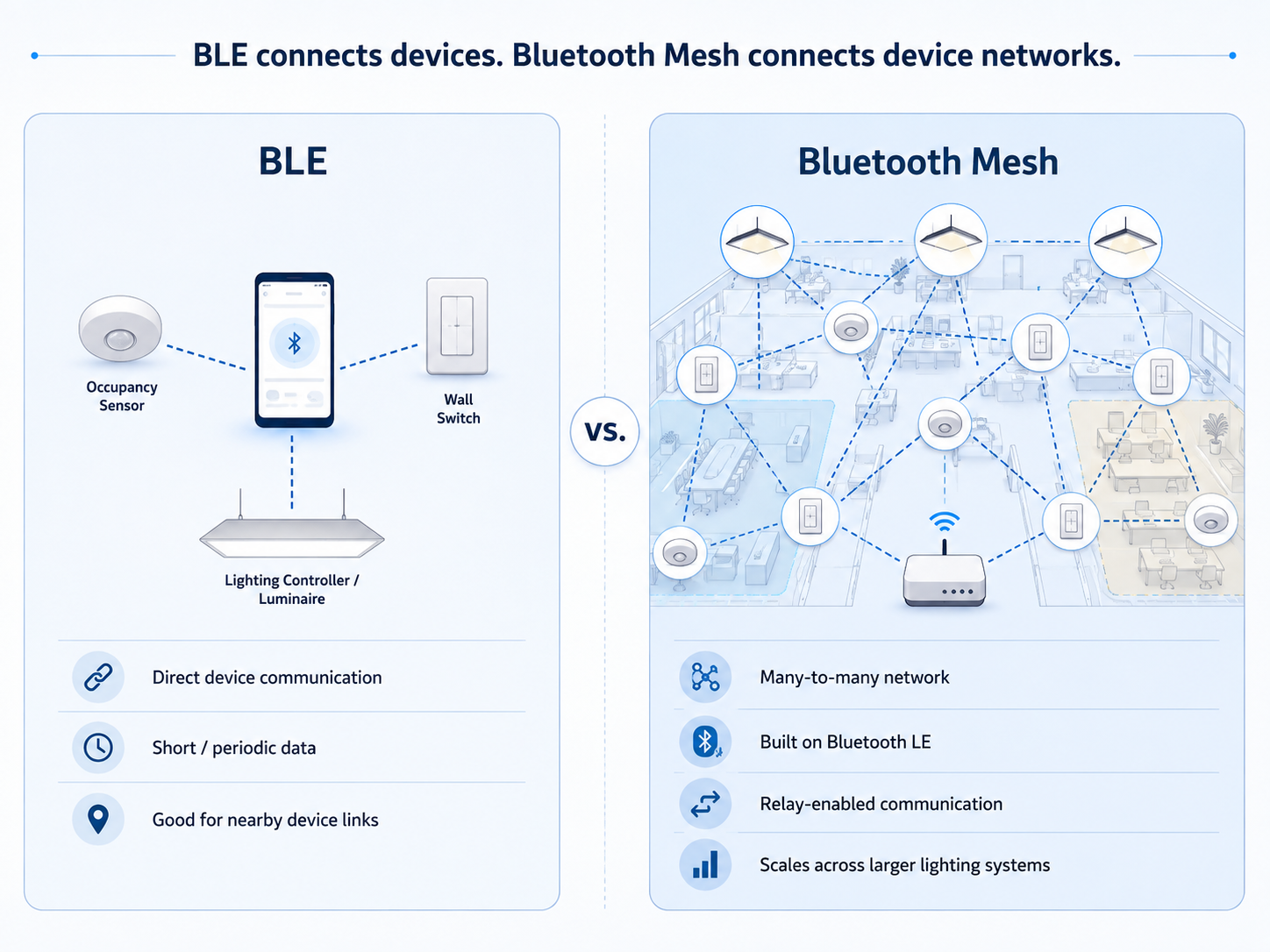

This is one of the most important distinctions to understand.
Bluetooth Low Energy is a wireless communication technology. Bluetooth Mesh is a networking technology built on Bluetooth LE.
A simple way to think about it is:
BLE connects devices. Bluetooth Mesh enables large groups of devices to communicate as a network.
| BLE | Bluetooth Mesh |
Wireless communication foundation | Many-to-many network architecture |
Common for direct device communication | Designed for larger device networks |
Used by sensors, phones and gateways | Well suited to lighting and automation |
A BLE device does not automatically support mesh | Uses Bluetooth LE technology |
A smartphone communicating directly with one sensor is an example of a typical BLE connection.
A commercial building where sensors, switches and hundreds of lighting controllers exchange commands across multiple zones is much closer to the type of application Bluetooth Mesh was designed to support.
Bluetooth Mesh uses a managed message-relaying architecture. Devices configured with relay functionality can retransmit messages, allowing communication to extend across a larger installation rather than depending entirely on one direct radio connection.
Lighting systems have several characteristics that make them a natural fit for mesh networking.
Commercial buildings may contain hundreds or thousands of luminaires distributed across rooms, corridors, floors and functional zones.
Bluetooth Mesh allows these devices to become part of a distributed control network.
Lighting is normally controlled by zones rather than one fixture at a time.
A conference room may contain several luminaires, one occupancy sensor and one wall switch. A warehouse aisle may contain dozens of fixtures controlled as one group.
Bluetooth Mesh supports group-oriented communication, allowing a control command or sensor event to affect multiple devices assigned to the same area.
Basic lighting functions do not necessarily need to depend on a cloud connection.
Depending on the system architecture, functions such as switching, dimming, occupancy control and daylight response can operate locally within the lighting network.
This is important for commercial buildings where normal lighting operation should not stop simply because an internet connection is unavailable.
Direct wireless range alone does not determine whether a system can cover a large building.
Actual radio performance varies according to antenna design, transmission power, building materials, interference and installation conditions.
A properly designed mesh network can extend communication through strategically positioned devices, making network architecture more important than a simple advertised “maximum range” figure.
Because Bluetooth technology is widely supported by smartphones and tablets, mobile devices can also be used as commissioning tools.
Depending on the platform, contractors can discover devices, configure zones, adjust control parameters and test lighting behavior directly from a mobile interface.
This can simplify commissioning compared with systems that require specialized hardware for every configuration task.
BLE is only one part of a complete smart lighting architecture.
A commercial wireless lighting control system may include:
Lighting controllers that connect the wireless network to LED drivers or luminaires through interfaces such as 0–10V or DALI.
Occupancy sensors that detect whether spaces are being used and trigger lighting responses.
Daylight sensors that allow lighting output to adjust according to available natural light.
Wireless switches that provide manual zone or scene control without requiring dedicated control wiring back to every fixture.
Gateways that connect the local lighting network to cloud platforms, remote management systems or external building systems.
The important point is that BLE provides connectivity, while the actual value comes from the control strategy built around that connectivity.
A well-designed system can use occupancy sensing, daylight harvesting, scheduling, task tuning and zone control to respond to how the building is actually operating.
One of the strongest use cases for BLE-based lighting control is the commercial retrofit.
Adding conventional wired controls to an existing building may require new control cabling, ceiling access and additional installation work.
That can become difficult in occupied offices, schools, warehouses, retail stores and other facilities that need to remain operational during the retrofit.
Wireless controls can reduce the need for new control wiring between sensors, switches and lighting-control devices.
This can help reduce:
New control cabling
Ceiling disruption
Installation labor
Re-zoning work
Changes to finished interiors
Wireless architecture can also make future changes easier.
If a tenant layout changes, for example, lighting groups and control relationships may be reconfigured in software rather than requiring the original control wiring to be redesigned.
The value of BLE lighting control is therefore not simply that it is “wireless.”
For retrofit projects, the larger benefit can be greater control flexibility with less physical disruption to the existing building.

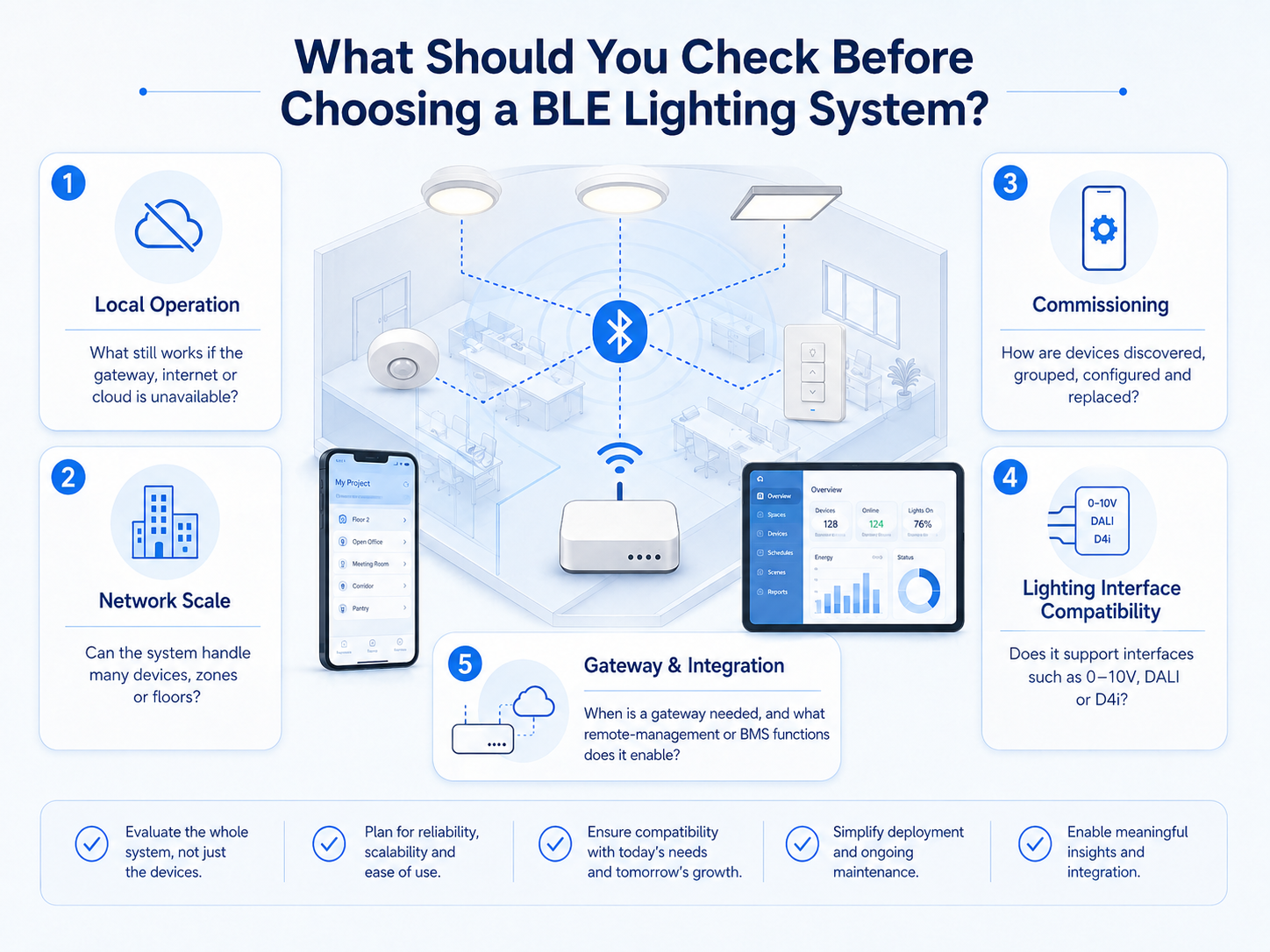

Not every system using Bluetooth technology provides the same capabilities.
For commercial projects, evaluate the complete architecture rather than focusing only on the wireless protocol.
Which functions continue to operate if the gateway, internet connection or cloud service becomes unavailable?
Core lighting control should be considered separately from remote management functions.
How does the system handle hundreds of devices, multiple zones or multiple floors?
Evaluate the network architecture rather than relying only on a single-device radio-range specification.
Consider how devices are discovered, identified, grouped, configured and replaced.
For large projects, commissioning time can have a significant impact on installation cost.
Check whether controllers support the luminaires and drivers used in the project.
Commercial systems may need interfaces such as 0–10V, DALI or D4i, depending on the application.
Determine when a gateway is required and what it provides.
For larger buildings, gateways may support functions such as remote management, multi-site monitoring, energy data and integration with higher-level building systems.
The Bluetooth ecosystem has continued to develop beyond basic BLE connectivity.
Bluetooth Mesh provides standardized mesh networking for Bluetooth LE devices, while Bluetooth Networked Lighting Control (NLC) extends this architecture with standardized device profiles specifically for commercial lighting control.
The Bluetooth SIG describes Bluetooth NLC as a full-stack wireless lighting-control standard, covering technologies from the Bluetooth LE radio layer through Bluetooth Mesh communication and device-level profiles.
For building owners and system integrators, this reflects a broader industry trend: lighting controls are becoming part of the building’s connected infrastructure rather than remaining isolated fixture controls.
LumiEasy applies BLE Mesh technology to wireless lighting-control systems for commercial and industrial buildings.
A typical system can combine:
Wireless lighting controllers
Occupancy and daylight sensors
Wall controls
Gateways
Mobile commissioning
Cloud management software
Local lighting strategies can be configured for functions such as zoning, dimming, occupancy control and daylight harvesting, while gateways can extend the system to remote management and higher-level building integration when required.
For retrofit projects in particular, the objective is to make advanced lighting control easier to deploy without adding unnecessary control wiring throughout the building.
BLE stands for Bluetooth Low Energy, also known as Bluetooth LE. It is a low-power wireless technology designed for efficient communication between connected devices.
BLE is part of the Bluetooth family, but it is different from Classic Bluetooth. Classic Bluetooth is commonly used for continuous applications such as audio, while BLE is optimized for low-power data communication.
No. BLE is the underlying wireless technology. Bluetooth Mesh is a many-to-many networking architecture built on Bluetooth Low Energy and designed for larger connected-device networks.
Commercial lighting systems can contain large numbers of luminaires, sensors and switches. Bluetooth Mesh supports distributed and group-based communication, making it suitable for networked lighting and building-control applications.
Not necessarily. BLE and Bluetooth Mesh use Bluetooth communication for the local wireless network. Depending on the system design, Wi-Fi or internet connectivity may only be needed for cloud access, remote management or external integration.
Yes. BLE provides wireless communication, while compatible controllers can interface with lighting technologies such as 0–10V or DALI. This allows wireless networking to be used with different types of commercial luminaires and LED drivers.
